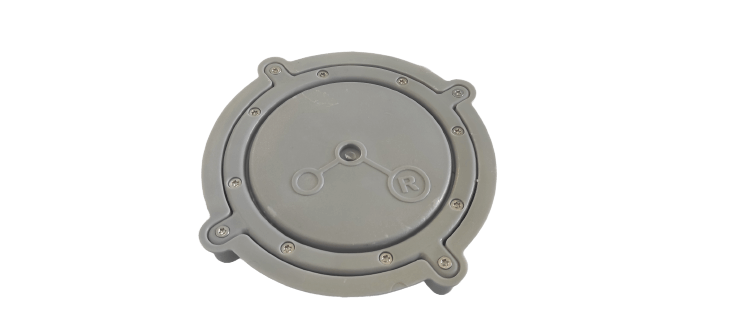

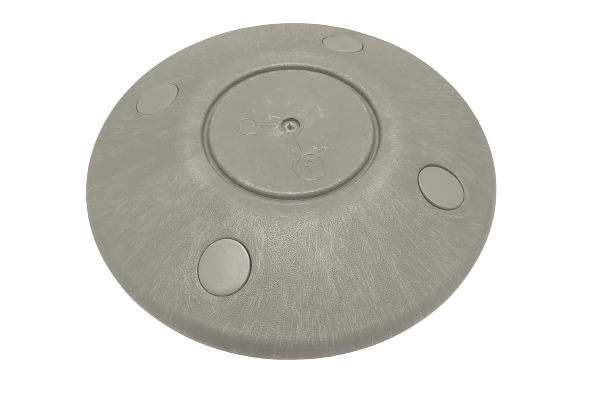

NB-IoT Parking Sensor S-LG-I3

Overview

Cicicom’s parking sensors can precisely detect parking events in dense, urban environments whether it’s a public parking lot, a private company parking space or a reserved parking spot for disabled people.

You can find our BPM portfolio here.

The detection algorithm has been extensively optimized to ensure peak performance while maintaining low-power consumption. The sensor self-calibrates in regular intervals, thus eliminating performance deterioration. It is capable of detecting and “filtering out” any potential noise that could cause a false read, while achieving a battery life of up to 10-years.

The sensors are based on the NB-IoT protocol and support OTA firmware updates. They are CE-RED, IK10 and IP68, Ipx9K certified and are autonomously powered by batteries. Our parking sensor solutions are ideal for municipal and rural infrastructure, guiding drivers towards vacant spots and eliminating congestion.

NB-IoT specifics

+ Long range coverage (Tx: 23dBm±2dB)
+ Input Sensitivity: -129dBm±1dB
Carriers:
+ Vodafone (Global)
+ Deutsche Telekom/Telefónica (Europe)
+ KT/LGU+ (South Korea)
+ SoftBank (Japan)
+ Telstra (Australia)

Key Features

+ Accurate real-time vehicle detection using electromagnetic technology
+ Surface mount or in-ground models available
+ Battery life up to 10 years
+ Automatically adapts to environmental fluctuations, suitable for any environment
+ Zero Maintenance
+ OTA firmware update
+ Device setup and troubleshooting through our Android Control App
+ Configurable intervals for keep-alive messages
+ Magnetometer failure alert
+ Operating temperature: -40°C to 85°C
+ Relative humidity: up to 100%

Frequency Bands

+ B1 @H-FDD: 2100MHz
+ B3 @H-FDD: 1800MHz
+ B8 @H-FDD: 900MHz
+ B5 @H-FDD: 850MHz
+ B20 @H-FDD: 800MHz
+B28 @H-FDD: 700MHz

Certifications

+ CE-RED
+ IK10 Impact resistance
+ IP68 and IPx9K degree of protection
